Digital Compressive Fatigue Tester For Building Materials 2000kN / 3000kN

Name: Digital Compressive Fatigue Tester For Building Materials 2000kN 3000kN
Brand: wangtebei
Price: 1 USD

Brand Name : wangtebei

Model Number : YES

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T

Supply Ability : 20 sets per month

Delivery Time : 5-8 working days

Packaging Details : export package

Max load : 2000kN

Test force measuring range : 4%-100%FS

Test Force showed the relative error : ≤indicating value±1%

Test Force Resolution : 0.03kN

Hydraulic pump rated pressure : 40MPa

Upper and lower bearing plate size : 320×260mm

Contact Now

Product Application

The testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test,also used to test the compressive performance of other materials.

Technical specifications: 2000kN/3000kN Digital Cement Compression Testing Machine
Max load	2000kN	3000kN
Test force measuring range	4%-100%FS
Test Force showed the relative error	≤indicating value±1%	<±1%
Test Force Resolution	0.03kN	0.03kN
Hydraulic pump rated pressure	40MPa
Upper and lower bearing plate size	320×260mm	500×500mm
Maximum distance between the upper and lower plate	330mm	500mm
Piston diameter	φ250mm	φ310mm
Piston stroke	50mm	100mm
Motor Power	0.77 kW	1.1kW
Outside dimension (lwh)	640×720×1500 mm	780×720×1950 mm
Weight	2000kg	2500kg

Digital Compressive Fatigue Tester For Building Materials 2000kN / 3000kN

Product Tags:

automatic compression testing machine

compression and flexural testing machines

Wholesale Digital Compressive Fatigue Tester For Building Materials 2000kN / 3000kN from china suppliers

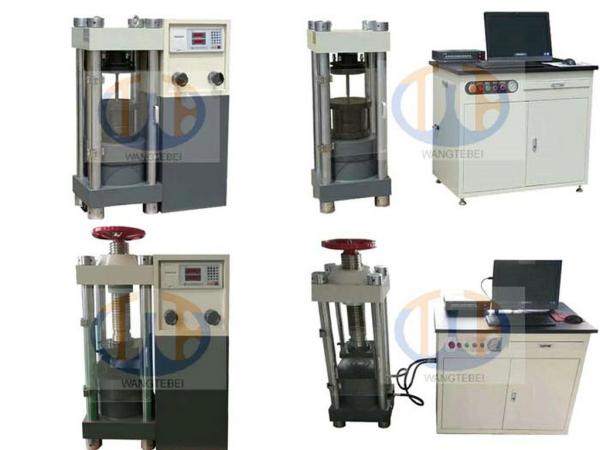

Digital Compressive Fatigue Tester For Building Materials 2000kN / 3000kN Images
